Barker Weekender

Location:

610 Highbury Rd, Glen Waverley, VIC 3150.

Pre-Design Condition:

610 Highbury Rd is a one level house with 2 bedrooms, 1 bath, and one misc room that needed the layout revised.

Client Brief:

- Create a comprehensive documentation set

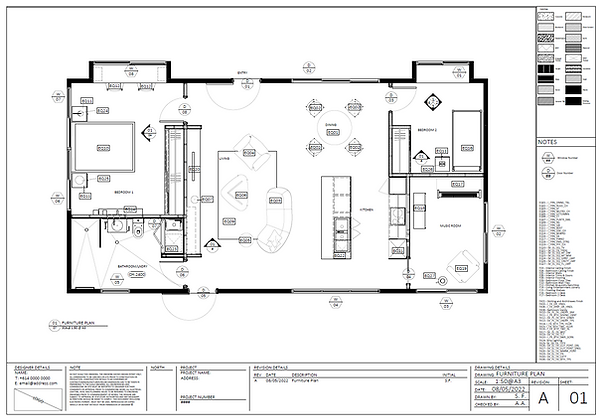

- Create a functional yet aesthetically pleasing furniture and reflected ceiling plan

Software: AutoCAD

Concept and Features:

This single-level home features two bedrooms, one bathroom, and a versatile additional room, which the clients have designated as a music room.



The Barker family consists of three members, with one child occupying Bedroom 2. This room is furnished with a bed, a closet, a bedside table, and a study nook. Its placement on the opposite side of the house from the master bedroom ensures privacy and gives both parents and child their own space.



The central area of the home, which includes the dining, kitchen, and living spaces, is thoughtfully designed to create clear boundaries while maintaining an open-plan layout.



The choice of materials throughout the home further enhances the distinct functions of each room. For example, the kitchen features bright, lively colors that open up the space, while the bathroom uses darker tones, emphasizing its role as a more private area.

Concept Development - Material boards

Screenshot 2024-11-14 145806.png
Screenshot 2024-11-14 134544.png

Section including bathroom and master bedroom

Screenshot 2024-11-25 164808.png

Elevations

Screenshot 2024-11-25 164833.png
